Programming the servo calibration procedure

DSCN9249

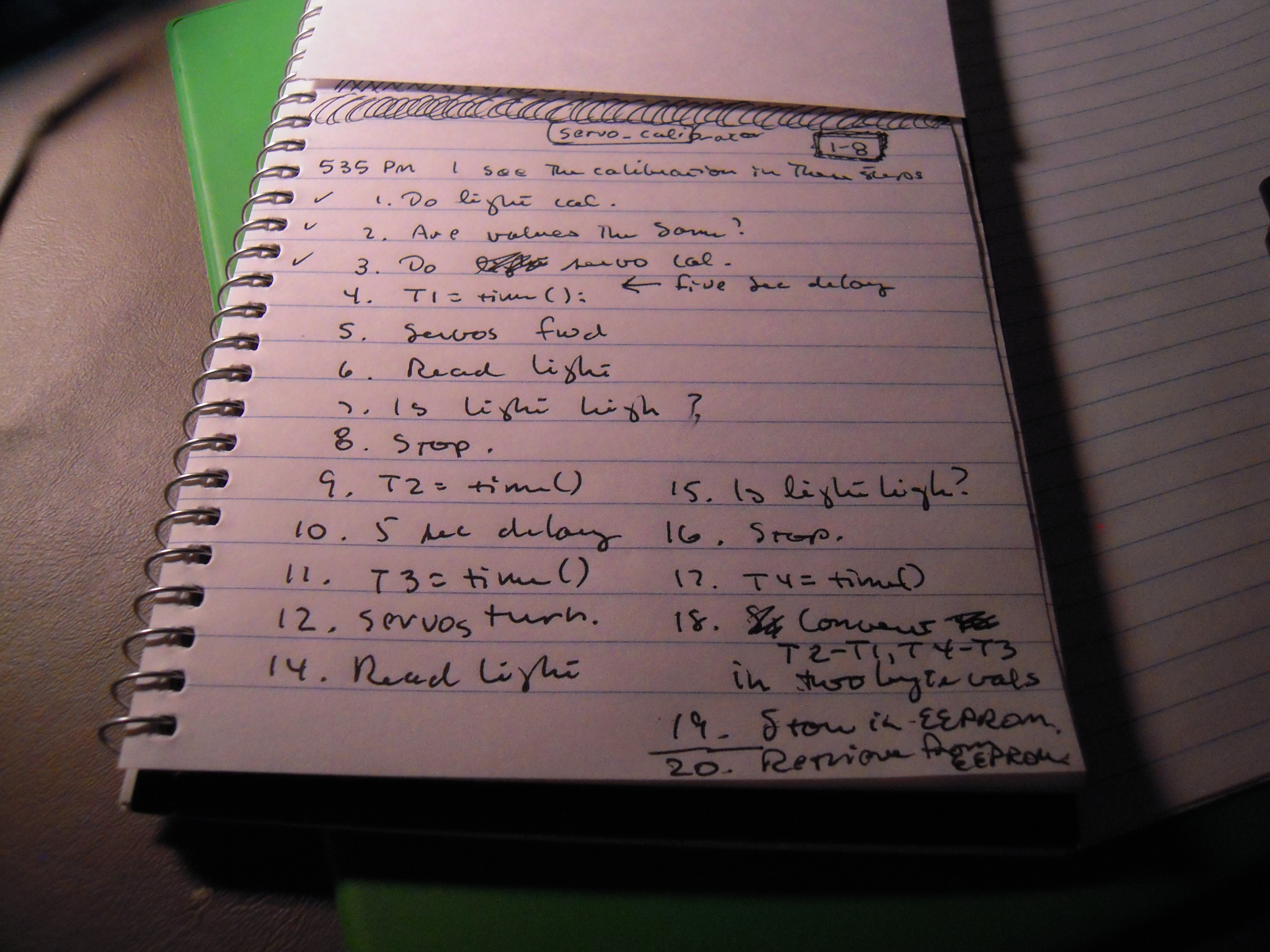

Sub program, sub routine, function, procedure — it seems like every programming language has a different name for ‘blocks of code.’ Well, now I need to write a block of code for the servo calibration procedure. So first I drafted the above procedure.

Then I modified the light calibration and main programs (functions, procedures, etc.) and created a servo_calibration() procedure. Here’s what part of that looks like:

  // activate the servos
  myservo1.attach(11);
  myservo2.attach(10);

  // servos move forward
  myservo1.write(0);
  myservo2.write(180);

  t1 = millis();

  servo_calibration1:

  v = analogRead(0);

  if (v<700){
    goto servo_calibration1;
  }

  t2 = millis();


The photo shows check marks to 3 but I’m actually down to step 17. Just have to do EEPROM and I’ll be on my way to ‘field testing.’

(NOTE: this configuration initiation procedure is different than the one I came up with a couple days ago. I’ll show how it works when I get it running.)
