Naked ATMega circuit layout

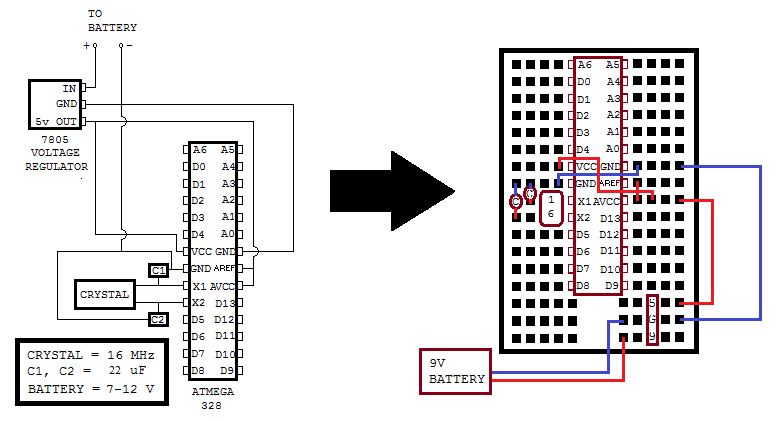

This is related to the previous entry and shows the circuit diagram and breadboard layout for an ATMega removed from the Arduino prototyping platform after being programmed. The wiring layout on the right isn’t mandatory, of course, but it does conserve on the voltage regulator’s 5V and Ground row holes.

(Jan 15, 2013 REVISION: Changed capacitors from 10 uF to 22 uF.)
