Arduino Uno in Sketchup (in progress)

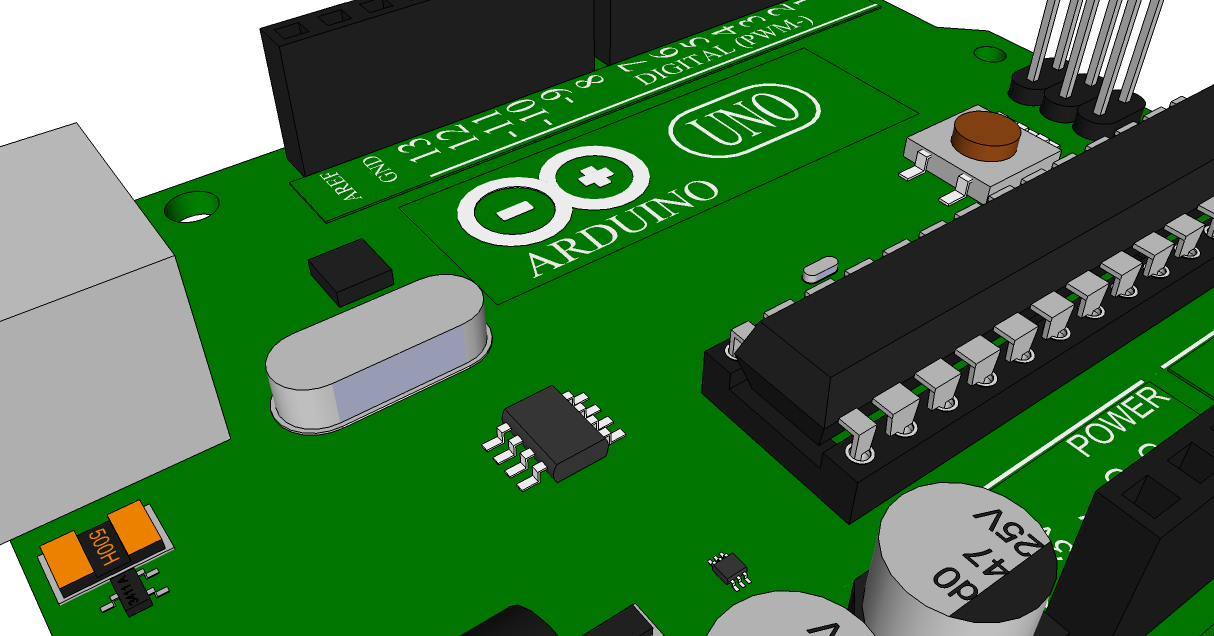

Based on the Arduino Duemilanova models I found in Google 3D Warehouse. It seems that one Arduino model is based upon another in the Warehouse in an evolutionary growth, so it’s hard to give credit for the original design. Suffice to say, I’ve had to revise and add stuff, but I didn’t start from scratch.

Anyhow, my goal is to show every single jot and tittle on the Arduino board without recourse to phototexturing. Then sometime this month I plan to scale it a thousand fold, set it on a foundation and erect observation platforms and conduct a guided tour . . . it’ll work. Trust me.
